In addition to our line of traditional segmental retaining wall systems for residential and commercial applications, we also offer Square Foot which is specially designed for select large-scale commercial or agency projects. Square Foot is designed using VERSA-LOK's unique top-pinning system and are manufactured to the same industry-exceeding standards as our other products. Square Foot uses the same cap units as other VERSA-LOK systems.
Dimensions
Shown above left to right
Versa-Lok Square Foot Block - 16 (face) x 14" (rear) x 12" D x 6" H (406mm x 355mm x152mm)
Rectangular Cap - 15 5/8" (face) x 11 5/8" D x 3 5/8" H (397mm x 295mm x 92mm)
18" (face) x 14" (rear) x 12" (depth) x 8" (height) (457mm x 356mm x 305mm x 203mm

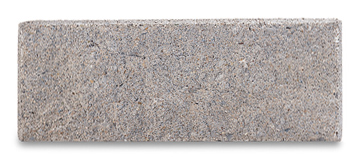

Colors click to enlarge
Available in gray only
Colors
shown should only be used as a guide. Always choose colors from
actual samples available at any of our locations.
IMPORTANT NOTICE:
Maximum height for an unreinforced Versa-Lok wall is four feet. Individual site, soil and loading conditions (including terraces) may limit unreinforced wall height to less than four feet. Taller walls require geosynthetic soil reinforcement and engineering assistance.
