Curve Patio Installation

Step by Step Paver Installation.

These are the basics for a successful installation. Additional questions can be answered by calling Oberfield's directly or by your local Oberfield's distributor. Also be sure to check out one of Oberfield's DIY seminars happening at a location near you.

hline
racking racking
Material Calculations
Crushed Limestone Base
1 ton covers 200 square feet at 1" deep
Take square footage of area and divide by 200 and then multiply by inches deep.
Example: 1000 sq. ft. with base 10" deep
1000/200=5 5x10" deep = 50 tons
Spacer
Concrete Setting Bed Sand
Same as above, maximum depth of sand should be 11/2" deep
Spacer

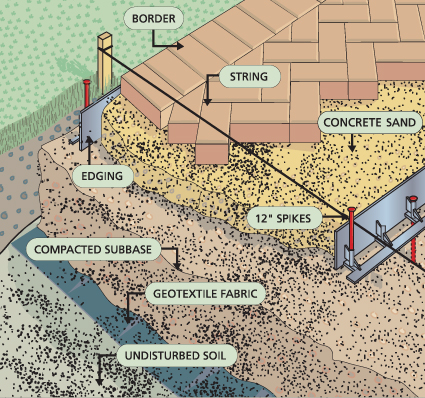

Installation Diagram
Click to enlarge
Diagram
1. Excavation/Base 2. Setting Bed

If you're installing a walkway or patio, you will need to remove a 4" to 6" depth of soil below your intended surface. For driveways and other heavy-duty applications, you will need an 8" to 10" depth. In moist or wet areas, lay down a geotextile fabric before compacting your base material of 3/4" stone with fines compacted in 3" lifts. Level to required grade, allowing room for setting bed.

Cover top of the compacted base with 1" to 11/2" of concrete sand. Level sand in narrow areas by pulling a 2" x 4" board, notched to give the proper depth, across the top of the plastic edging. To level wide areas, use a 2" x 4" board on top of parallel 1" diameter pipes.

racking racking
3. Paver Installation 4. Edge Restraint

Place Presidential Series® pavers in your desired pattern. Select pavers vertically from multiple cubes for optimum color blending. Use a concrete saw to cut odd-shaped pieces within your design. Use string lines to assure a straight layout. Spacing between pavers should not exceed 1/8".

Plastic edge restraints are ideal for laying out the borders of your design. Lay edging directly on stone base and secure with 12" landscape spikes. Use spikes every two feet for straight walkway and patio edges, every one foot for curves and driveways.

racking

Need Some Ideas?

Browser through our extensive library of paver patios filled many innovative designs and layouts.

>> Paver Inspiration Gallery

5. Compacting/Sweeping

Spread sand over the top of your paver installation and sweep into all joints. The vibrating action of a plate compactor (equipment rental) will force sand between the joints to further stabilize and level the surface. Excess sand should be swept into the joints.
